ES-Cushion &
ES-Barrier System

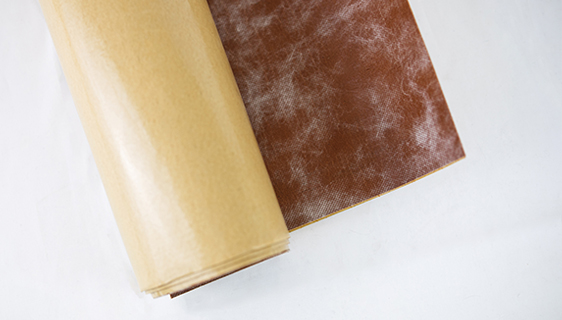

ES-BARRIER
ES-Barrier high moisture precured adhesive system with acoustic and impact performance. For immediate flooring installation of LVT, VCT, vinyl and other sheet goods, carpet tile, rubber, engineered hardwood and more.
| Good for RH Reading up to 99% RH |
| Suppresses sounds and room noise |
| Smooths out minor floor irregularities |
| Installs quickly and easily with ONE side coated or DOUBLE BOND coated with EnviroSTIX™ Adhesive |
| Perfect for Use over in-floor heating |
| Hypoallergenic, Adhesive with NO VOCs or smell |
| CRI Green Label Plus-Ceritifed |
Compression Set: @50% 31.5%
Indentation Force Deflection: @25% 677.2 lbs of force
Indentation Force Deflection: @65% Exceeds 5,000 lbs of force
Indoor Air Quality: CRI Green Label Plus-Certified
Antimicrobial: Yes
Warranty: Limited
Product Code: BV0340
Composition: Made of High-Density Synthetic Rubber
Material Content: 100% Synthetic Rubber and Water Based Poly Acrylic Adhesive with paperliner
Traffic Classification: Class 3 Extra Heavy
Material Weight: 47.4 oz./sq yd. Single sided adhesive system -52.8 oz./sq.yd. Double sided adhesive system.
Density: 62lbs./cubic ft.
Density: 62 lbs/ft3 or 42 oz/yd2
Thickness: 1.47mm for single sided applied adhesive system -1.52mm for double sided applied adhesive system Thickness: 0.056″ (1.42 mm)
Weight: Varies
Length of Rolls: 100′ or 200′
Dimensions: 54″ x 44′ or 54″ x 22′
R-Value: 0.02 Moisture Barrier: N/A*
Durability Test: Passes 25,000 Cycles**
Impact Insulation 66 Class (IIC)***
ΔIIC 22 Sound Transmission 63 Class (STC)***
Resistance to topical liquid: 100%
Vapor permeability from slab: Class 2 Vapor semi-impermeable
Antimicrobial: Guardian TM
✔ Pill Test
✔ Smoke Chamber
Flooring Radiant Panel: Composite test w/
ASTM E492-09/ASTM E989-06
ΔIIC: ASTM E2179-03
STC: ASTM E90/ASTM E413-10
ES-BARRIER MAX
ES-Barrier MAX high moisture precured adhesive system with acoustic and impact performance. For immediate flooring installation of LVT, VCT, vinyl and other sheet goods, carpet tile, rubber, engineered hardwood and more.
| Good for RH Reading up to 100%RH |
| Suppresses sounds and room noise |
| Smooths out minor floor irregularities |
| Installs quickly and easily ONE BOND one side coated or DOUBLE BOND coated both sides coated with EnviroSTIX™ Adhesive |
| Perfect for Use over in-floor heating |
| Hypoallergenic, Adhesive with NO VOCs or smell |
| CRI Green Label Plus-Ceritifed |
Indoor Air Quality:
CRI Green Label Plus – certified
Antimicrobial: Guardian™
Warranty: 5-Year limited
Composition: High-Density Synthetic Rubber
Density: 62 lbs/ft3 | 42 oz/yd2
Thickness: 0.0056″ | 1.42 mm
Moisture Barrier: See MB Primer
Color: Red
Castor Durability Test: Passes 25,000 cycles
Product Dimensions: 54″ x 44′ or 54″ x 22′
Length of Rolls: 100′ or 200′
Weight: Varies
R-Value: 0.02
| ES-MBP | ES-ADHESIVE | |
|---|---|---|
| Base | Solvent-Free, Polyurethane Resin | Solvent-Free, Acrylic Dispersion |
| Form | Fluid | Solid |
| Color | Dark Translucent | Clear |
| Cure Time | 40-60 Minutes per Coat | Pre-cured Immediate Access |
| Install Temp Range | 60° to 75° F | 45° to 90° F |
| Water Solubility | Hydrolyzed | Negligible |
| Surface PH Range | Neutralizes the PH. | 7-14 PH — No limit when used in combination with the ES-MBP. |
| Coverage | 2.5 Gallon / Unit: 1500 sf (Spread rate will vary due to job site conditions) | Full even spread on the backing of the flooring material |
| Sheet Goods & Modular Attic Stock Shelf Life | 1 yr unopened container(at 70° F or 21 C) 30 days opened container (at 70° F or 21C) | 5 Years* |
| VOC CONTENT | ------- 0 g/l (Out of 50 g/l Allowable) ------- | |
| WARRANTY | ---------------- 5-Year limited ---------------- | |
| *(Flooring manufacturer’s recommendations on storage, temperature, and shelf life supersede those of the ES-100.) | ||

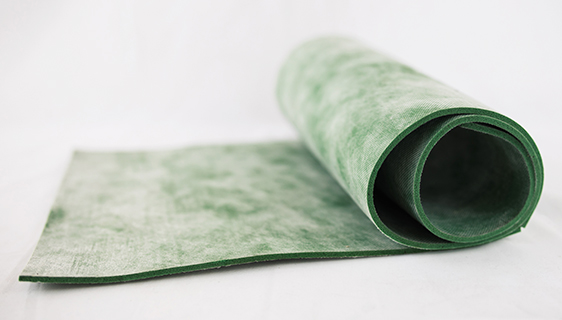

ES-CUSHION
ES Cushion modular carpet tile cushion offers a premium passive vibration isolation barrier for use under most types of modular tile. When the ES-Cushion is used, the transmission of sound vibration created by activity on the floor becomes largely isolated while passing through to the ceiling below. In addition, the high-quality design and density provides support and comfort underfoot, while also extending carpet life.
| Made with synthetic rubber |
| Includes StainSTOP™ moisture barrier |
| Single or Double Bond High Moisture Resistant Adhesive |
| Features Guardian™ antimicrobial |
| CRI Green Label Plus-certified for indoor air quality |
| CRI Green Label Plus-Ceritifed |
Compression Set: 15%
Method 601/12151
CLD PSI @ 25% Deflec. Min.: 7
CLD PSI @ 65% Deflec. Min.: 45
Min. ASTM-D2646
Breaking Strength PSI Length: 45
Breaking Strength PSI Width: 41
Indoor Air Quality:
CRI Green Label Plus – certified
Antimicrobial: Guardian™
Warranty: 10-Year limited
Traffic Classification: Extra-Heavy Material
Weight: ≈ 75lbs
Density: 33 lbs./cu. ft.
Thickness: 0.156″
Product Dimensions: 54″ x 30′
Mfg. Tolerances: Width: +/-1%
Thickness: +0.030/-0.015
Approx. Shipping Wt.: 124 lbs. per roll
Color: Green
Material Content:
Made with Synthetic Rubber
Design Configuration: Flat/Flat
Backing Top: Spunbonded
Backing Bottom: Poly-Tek
Moisture Resistant: 98%
StainSTOP™
Impact Insulation Class: 65 (ASTM E492)
Delta(IIC): 32 (ASTM E2179)
Sound Transmission Class (STC):
52(ASTM E90)
Sound Absorption (NRC):
0.30 (ASTM C 423-81)
R-Value: 0.270
K-Value: 0.577
Meets Federal Spec.:
Class I (ZZ-00811B, Type I)
Electrostatic: 3.4 (AATCC-134)
✔ Pill Test (DOC-FF 1-70)
✔ Smoke Chamber
Flooring Radiant Panel: Not applicable to separate carpet cushion. Carpet must be tested in composition with cushion.
BENEFITS
- Provides passive vibration isolation of sound transfer through floors.
- Offers support while increasing carpet life.
- Inhibits the growth of mold, mildew, and odor-causing bacteria.
- Keeps spills from penetrating to subfloor.
- 100% recyclable at the end of its useful life.
ES-CUSHION MAX
ES-Cushion modular carpet tile cushion offers a premium passive vibration isolation barrier for use under most types of modular tile. When the Modular PVI is used, the transmission of sound vibration created by activity on the floor becomes largely isolated while passing through to the ceiling below. In addition, the high-quality design and density provides support and comfort underfoot, while also extending carpet life.
| Made with synthetic rubber |
| Includes StainSTOP™ moisture barrier |
| Single or Double Bond High Moisture Resistant Adhesive |
| Features Guardian™ antimicrobial |
| CRI Green Label Plus-certified for indoor air quality |
| CRI Green Label Plus-Ceritifed |
Indoor Air Quality:
CRI Green Label Plus – Certified
Antimicrobial: Guardian™
Warranty: 5-Year limited
Composition:
High-Density Synthetic Rubber
Density: 62 lbs/ft3 | 42 oz/yd2
Thickness: 0.0056″ | 1.42 mm
Moisture Barrier: See MB Primer
Color: Red
Castor Durability Test:
Passes 25,000 cycles
Product Dimensions:
54″ x 30′
Length: 135′
Roll Weight: ≈ 75lbs
R-Value: 0.270
| ES-MBP | ES-ADHESIVE | |
|---|---|---|
| Base | Solvent-Free, Polyurethane Resin | Solvent-Free, Acrylic Dispersion |
| Form | Fluid | Solid |
| Color | Dark Translucent | Clear |
| Cure Time | 40-60 Minutes per Coat | Pre-cured Immediate Access |
| Install Temp Range | 60° to 75° F | 45° to 90° F |
| Water Solubility | Hydrolyzed | Negligible |
| Surface PH Range | Neutralizes the PH. | 7-14 PH — No limit when used in combination with the ES-MBP. |
| Coverage | 2.5 Gallon / Unit: 1500 sf (Spread rate will vary due to job site conditions) | Full even spread on the backing of the flooring material |
| Sheet Goods & Modular Attic Stock Shelf Life | 1 yr unopened container(at 70° F or 21 C) 30 days opened container (at 70° F or 21C) | 5 Years* |
| VOC CONTENT | ------- 0 g/l (Out of 50 g/l Allowable) ------- | |
| WARRANTY | ---------------- 5-Year limited ---------------- | |
| *(Flooring manufacturer’s recommendations on storage, temperature, and shelf life supersede those of the ES-100.) | ||
DOCUMENTATION
Click below to view technical datasheets, maintenance instructions, warranties and installation guides.
